5-22K psi STONEAGE SPITFIRE

Manufacturer: StoneAge Tools
SKU: SPFR-P8-S

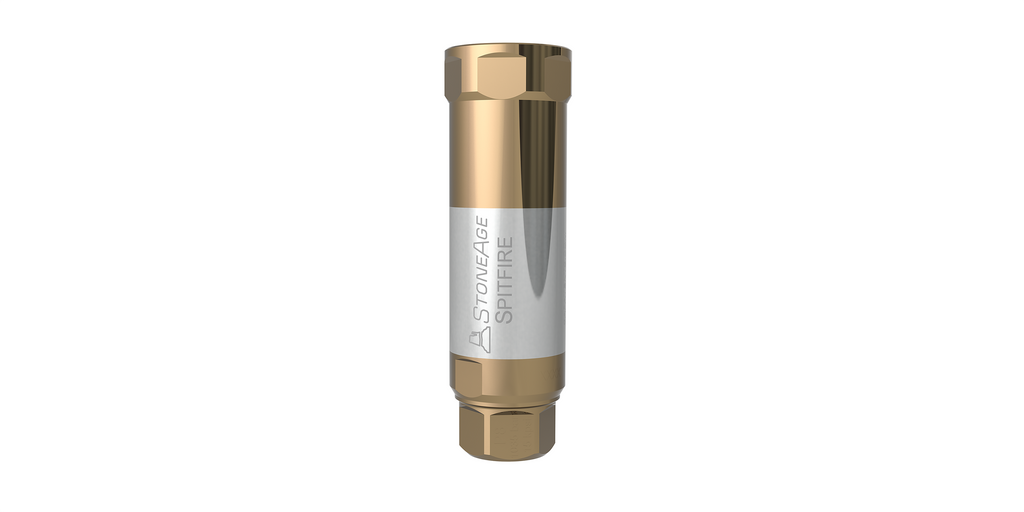

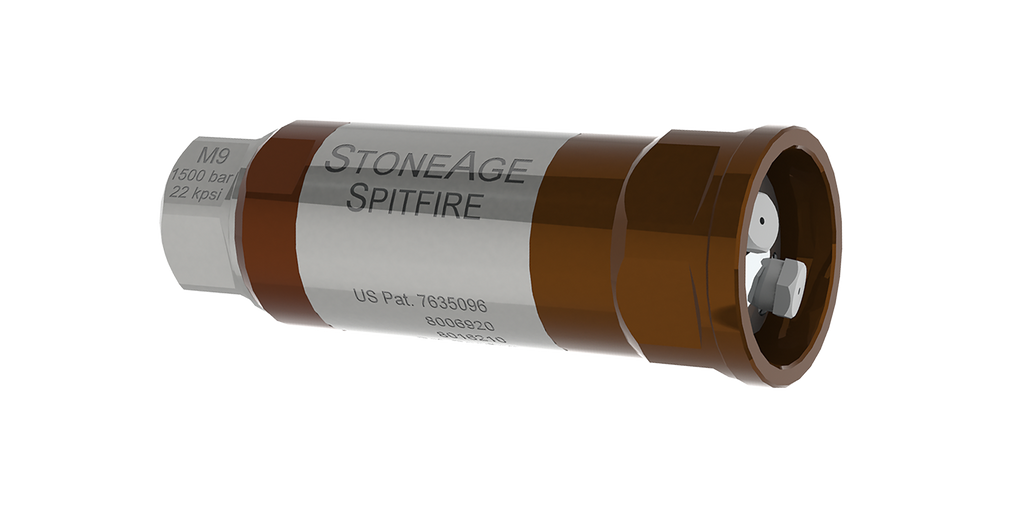

The Spitfire rotary shotgun tool is designed for cleaning difficult and irregular surfaces where manual shotgun cleaning is required. The extra lightweight Spitfire requires little maintenance, reducing down time and increasing productivity.


Features:

  • Handles a wide range of pressure ratings from 5 – 22k psi (340 – 1500 bar) – fewer tools to buy to cover all applications and less downtime swapping or rebuilding tools
  • High speed rotation is excellent for removing thin coatings
  • Angled jets allow have broader impact for quicker, more effective cleaning of large surfaces and odd shapes
  • Fewer parts and no seals to stock or replace means reduced costs and maintenance downtime
  • Short overall tool length and light weight allow easy handling and less operator fatigue

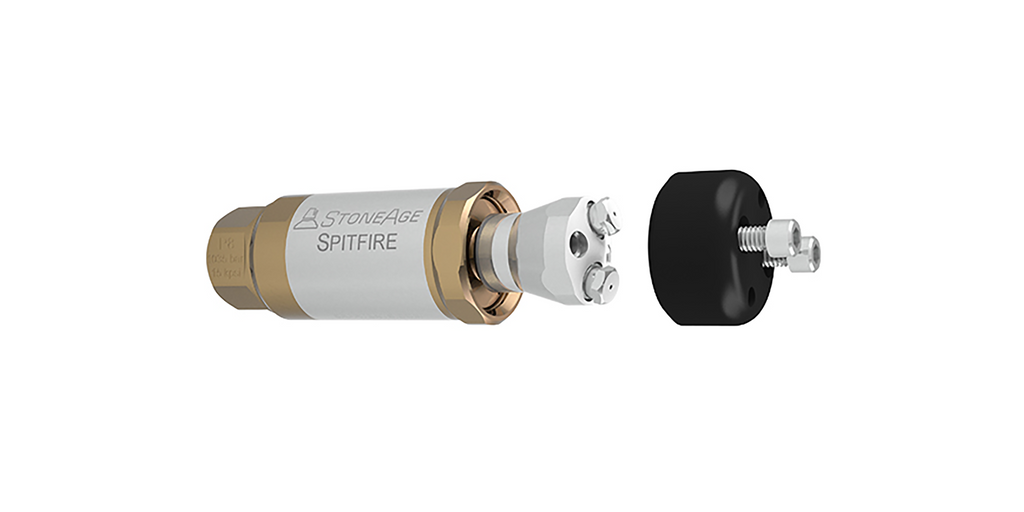

  • External shield option protects the tool from damage caused by lateral impacts

Digital Downloads:

  1. Spitfire Specs Sheet
  2. Spitfire User Manual
  • Tool Family: Spitfire
  • Tool Models: SPFR-P8-S, SPFR-P8-B
  • Pressure Range: 5 - 15K psi (340 - 1000 bar)
  • Flow Range: 2 - 15 GPM (8 - 58 l/min)
  • Flow Coefficient: 0.60 Cv
  • Rotation Speed: 3000 - 5000 RPM
  • Inlet Connection: 1/2" NPT
  • Port Size: 1/8" NPT (P2)
  • Nozzle Type: AP2
  • Diameter: 1.70 in. (43 mm)
  • Length: 5.10 in. (S), 4.80 in. (B) / 129 mm (S), 120 mm (B)
  • Weight: 1.50 lb (S), 1.70 lb (B) / 0.70 kg (S), 0.80 kg (B)
  • Maximum Water Temperature: 212°F (100°C)
  • Tool Family: Spitfire
  • Tool Models: SPFR-MP9-S, SPFR-MP9-B
  • Pressure Range: 5 - 22K psi (340 - 1500 bar)
  • Flow Range: 4 - 13 GPM (16 - 49 l/min)
  • Flow Coefficient: 0.60 Cv
  • Rotation Speed: 3000 - 5000 RPM
  • Inlet Connection: 9/16" MP Gland
  • Port Size: 1/8" NPT (P2)
  • Nozzle Type: AP2
  • Diameter: 1.70 in. (43 mm)
  • Length: 5.10 in. (S), 4.80 in. (B) / 129 mm (S), 120 mm (B)
  • Weight: 1.50 lb (S), 1.70 lb (B) / 0.70 kg (S), 0.80 kg (B)
  • Maximum Water Temperature: 212°F (100°C)
