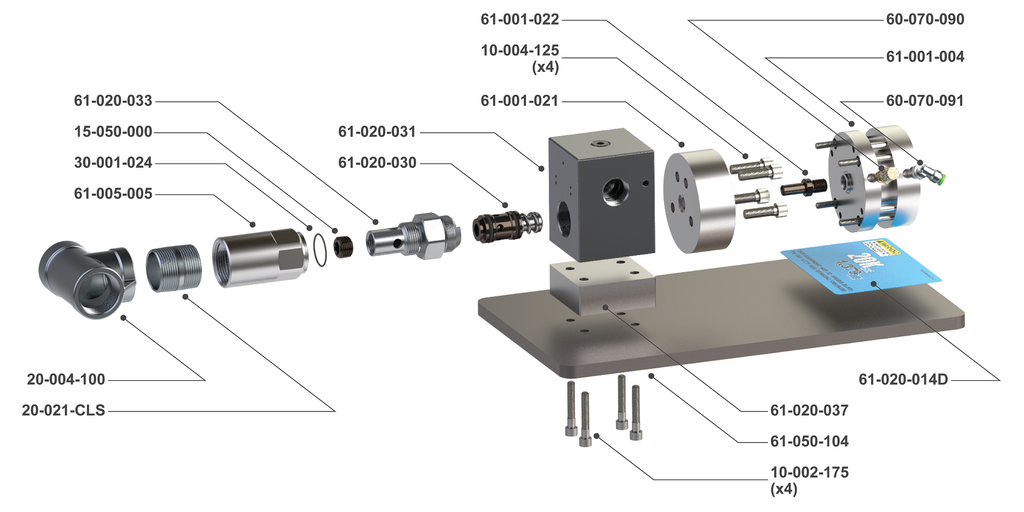

20K High Volume Air Diverter Valve
20K High Volume Air Diverter Valve
20K High Volume Air Diverter Valve
20K High Volume Air Diverter Valve

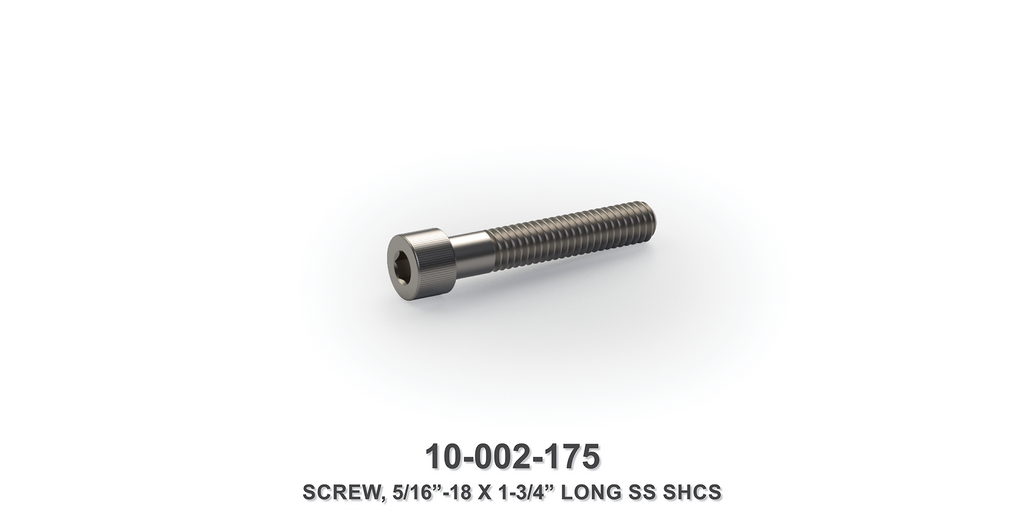

5/16"-18 x 1-3/4" Long SS SHCS Screw

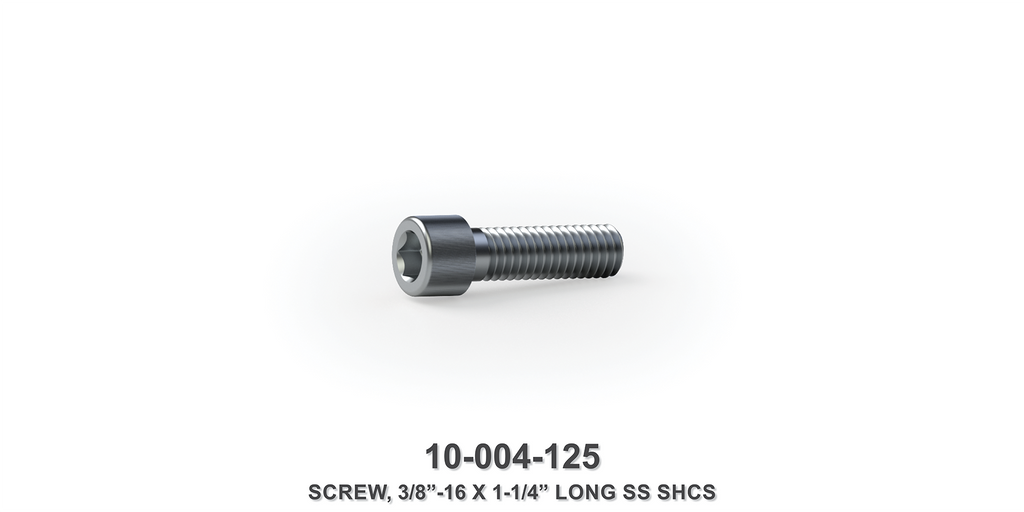

3/8"-16 x 1-1/4" Long SS SHCS Screw

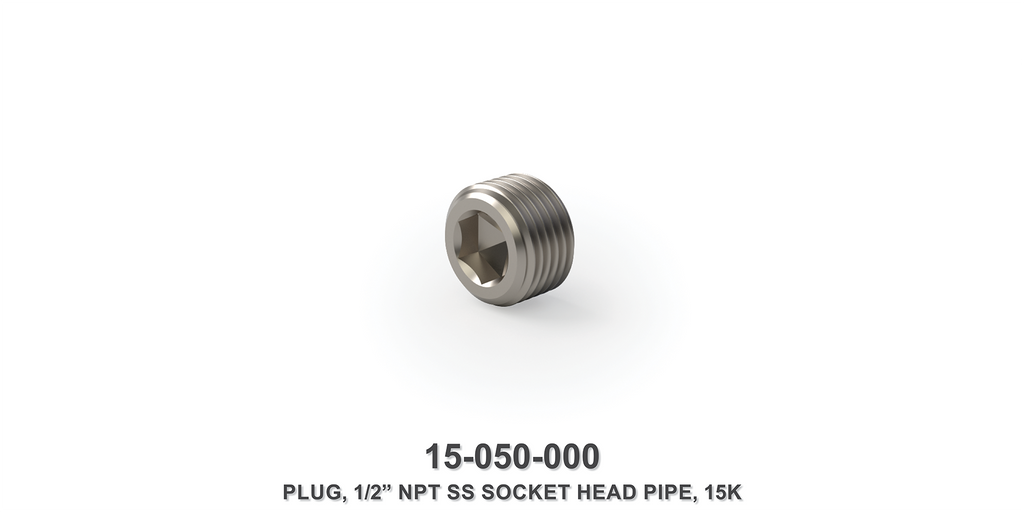

15K 1/2" NPT SS Socket Head Pipe Plug

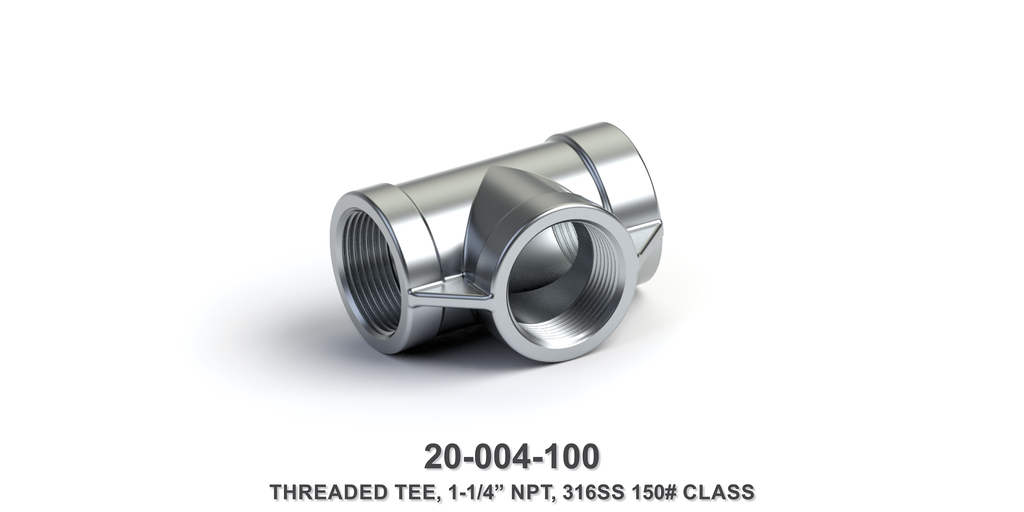

1-1/4" NPT Threaded Tee

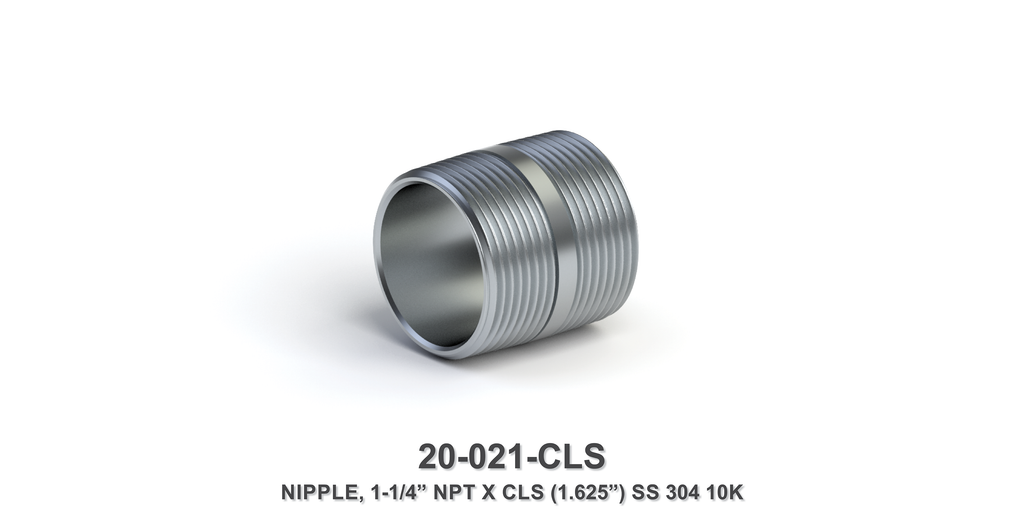

1-1/4" NPT x CLS Nipple

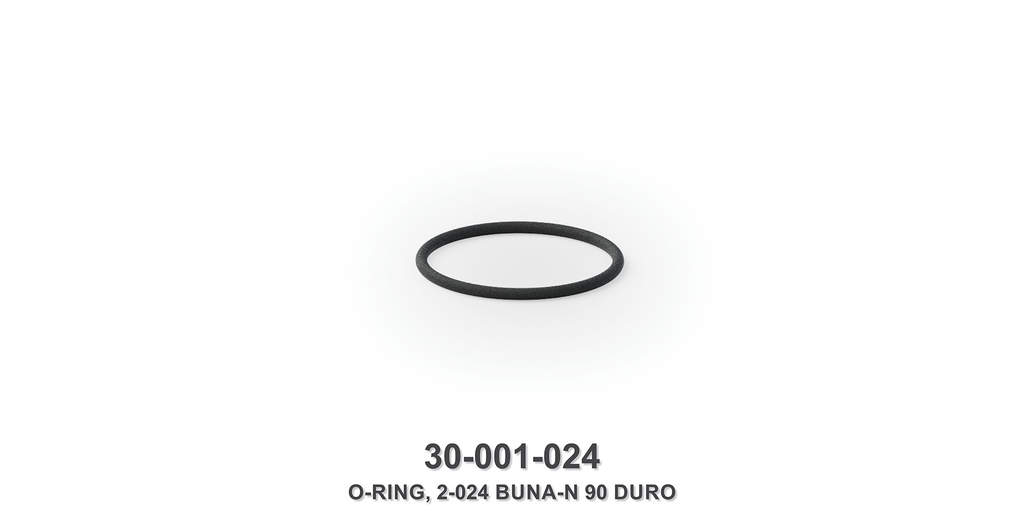

2-024 Buna-N 90 Duro O-Ring

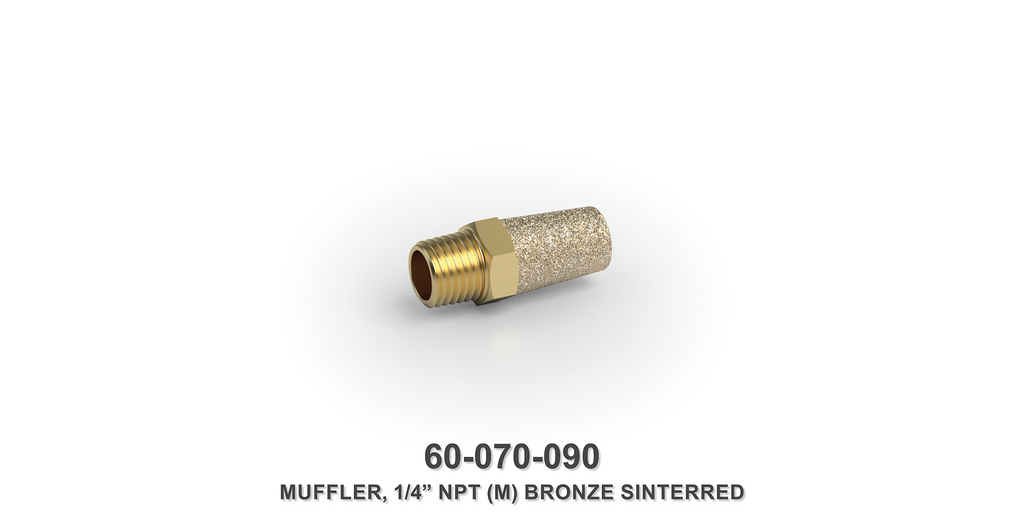

1/4" NPTM Bronze Sinterred Muffler

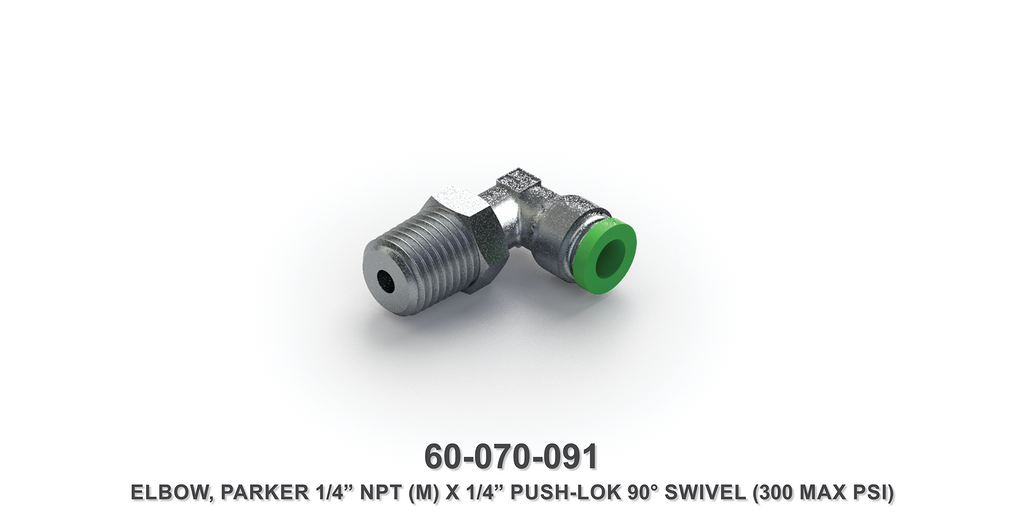

Parker 1/4" NPTM x 1/4" Push-Lok 90-Degree Swivel Elbow

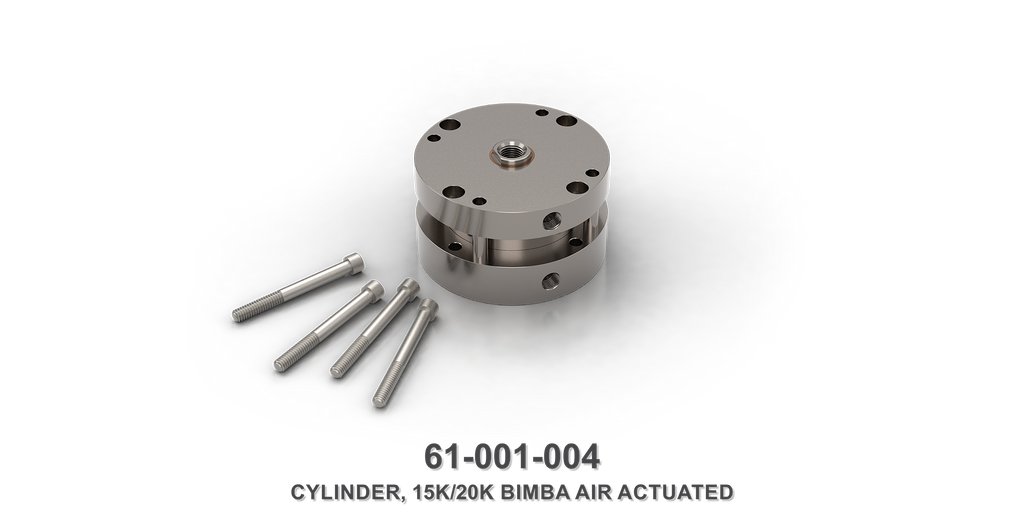

15K/20K Bimba Air Actuated Cylinder

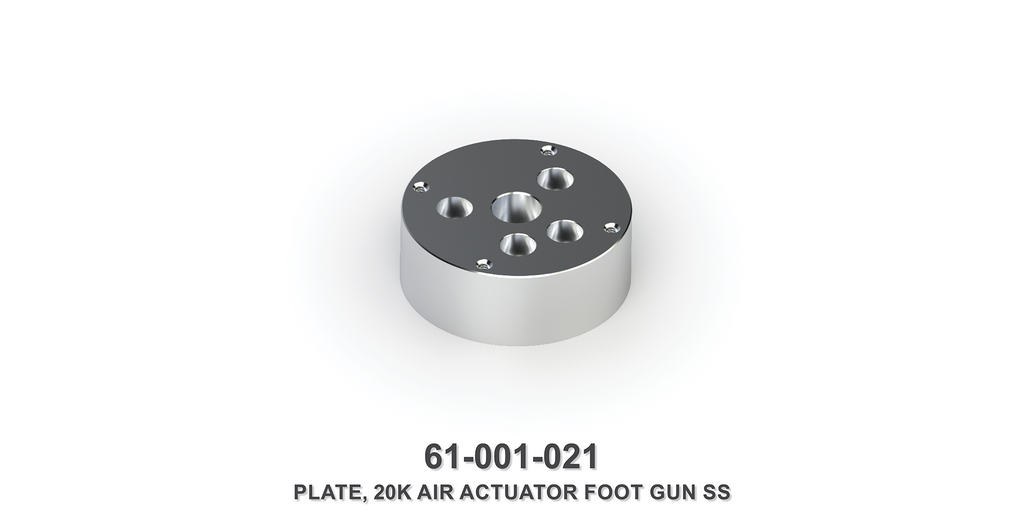

20K Air Actuator Foot Gun SS Plate

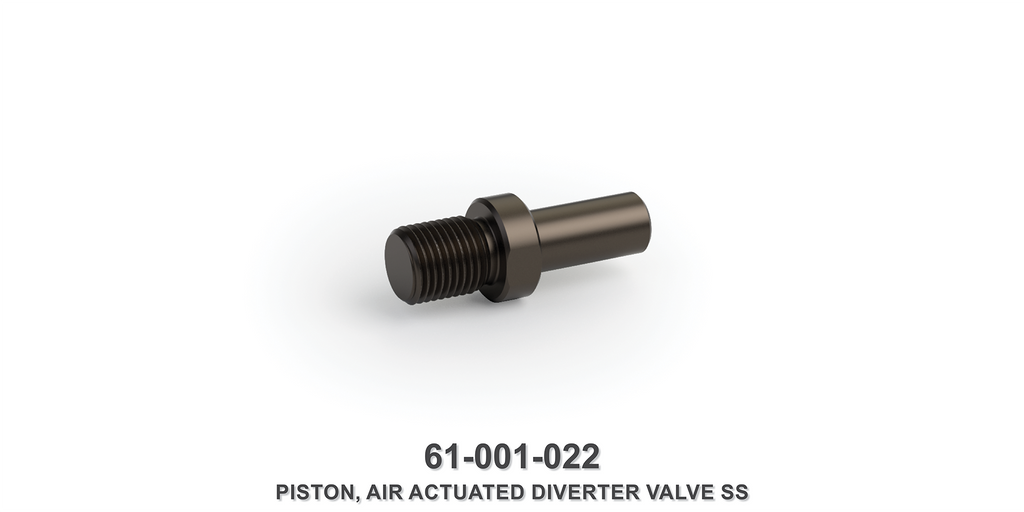

Air Actuated Diverter Valve SS Piston

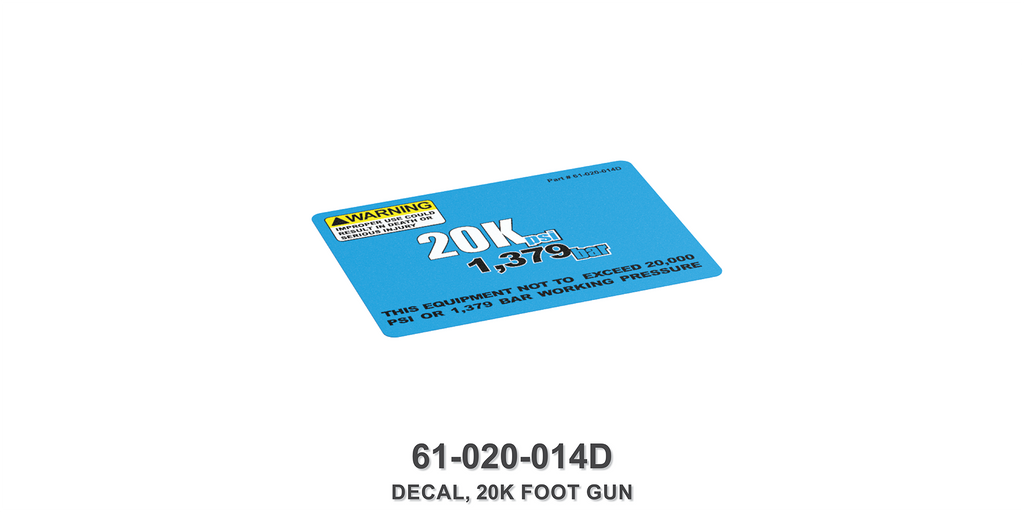

20K Foot Gun Decal

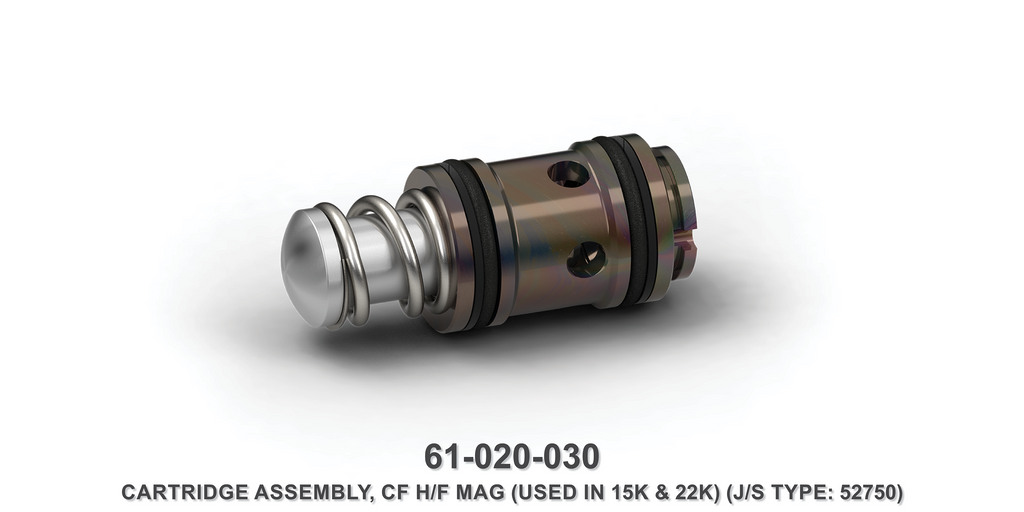

15K/20K CF High Flow Mag Cartridge Assembly

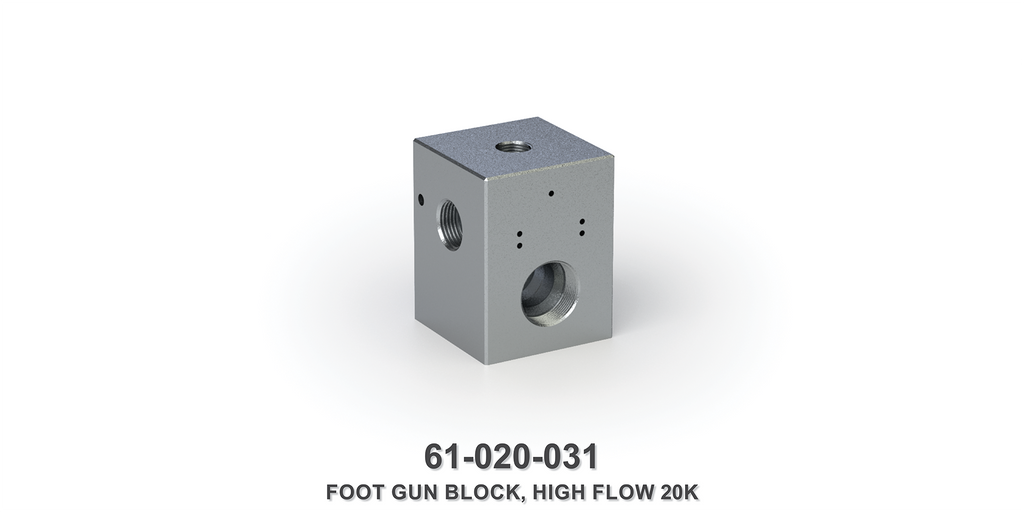

20K High Flow Foot Gun Block

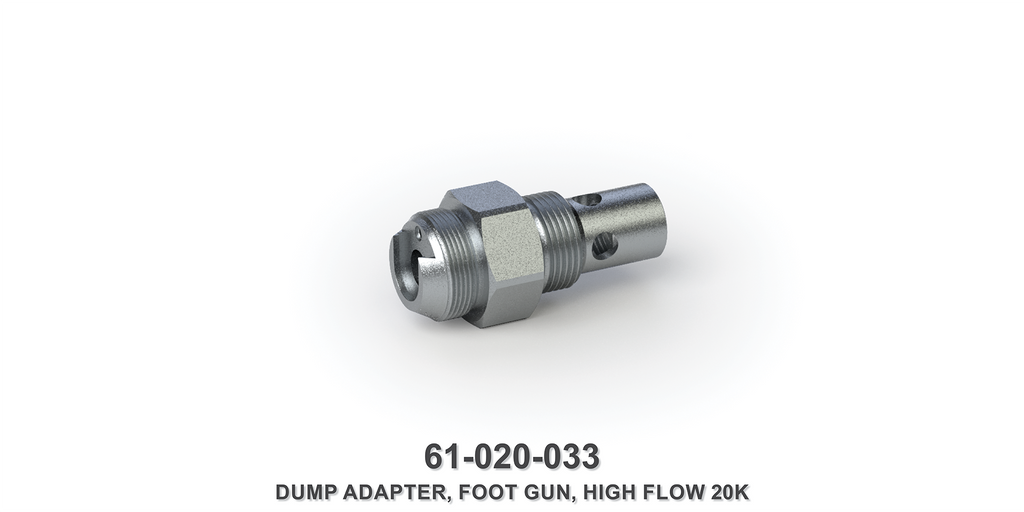

20K High Flow Foot Gun Dump Adapter

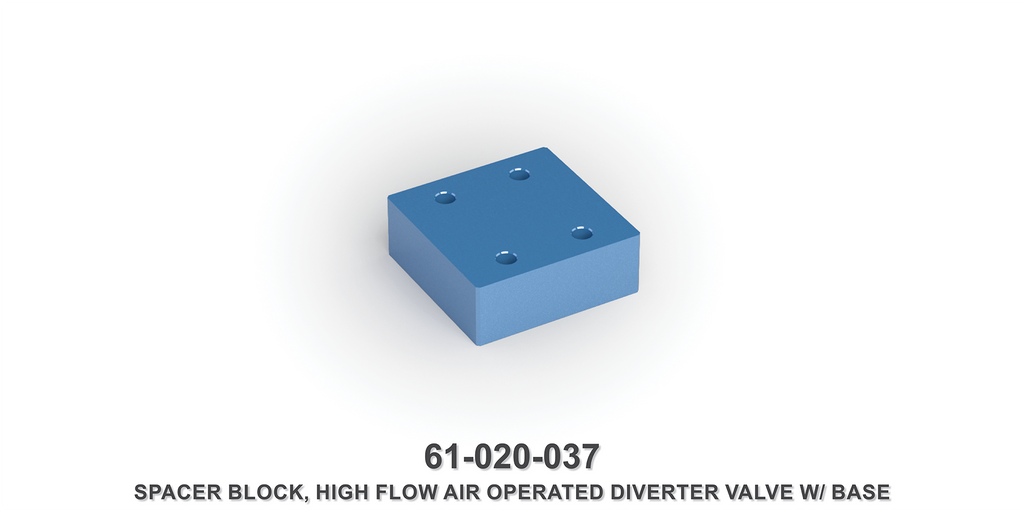

High Flow Air Operated Diverter Valve Spacer Block
High Flow Foot Gun Dump Tube

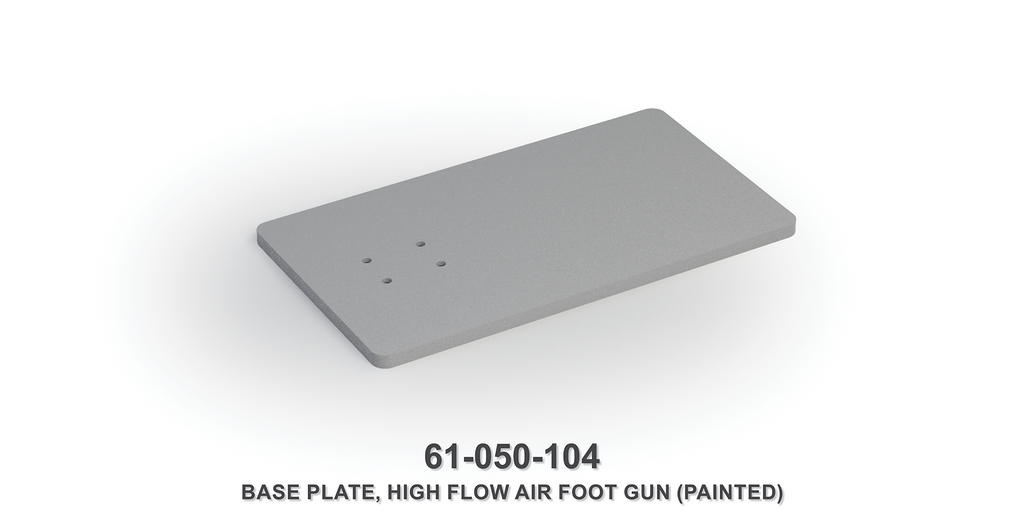

High Flow Air Foot Gun Base Plate (Painted)
Left
Right
20K High Volume Air Diverter Valve 20K High Volume Air Diverter Valve 20K High Volume Air Diverter Valve 20K High Volume Air Diverter Valve 5/16"-18 x 1-3/4" Long SS SHCS Screw 3/8"-16 x 1-1/4" Long SS SHCS Screw 15K 1/2" NPT SS Socket Head Pipe Plug 1-1/4" NPT Threaded Tee 1-1/4" NPT x CLS Nipple 2-024 Buna-N 90 Duro O-Ring 1/4" NPTM Bronze Sinterred Muffler Parker 1/4" NPTM x 1/4" Push-Lok 90-Degree Swivel Elbow 15K/20K Bimba Air Actuated Cylinder 20K Air Actuator Foot Gun SS Plate Air Actuated Diverter Valve SS Piston 20K Foot Gun Decal 15K/20K CF High Flow Mag Cartridge Assembly 20K High Flow Foot Gun Block 20K High Flow Foot Gun Dump Adapter High Flow Air Operated Diverter Valve Spacer Block High Flow Foot Gun Dump Tube High Flow Air Foot Gun Base Plate (Painted)

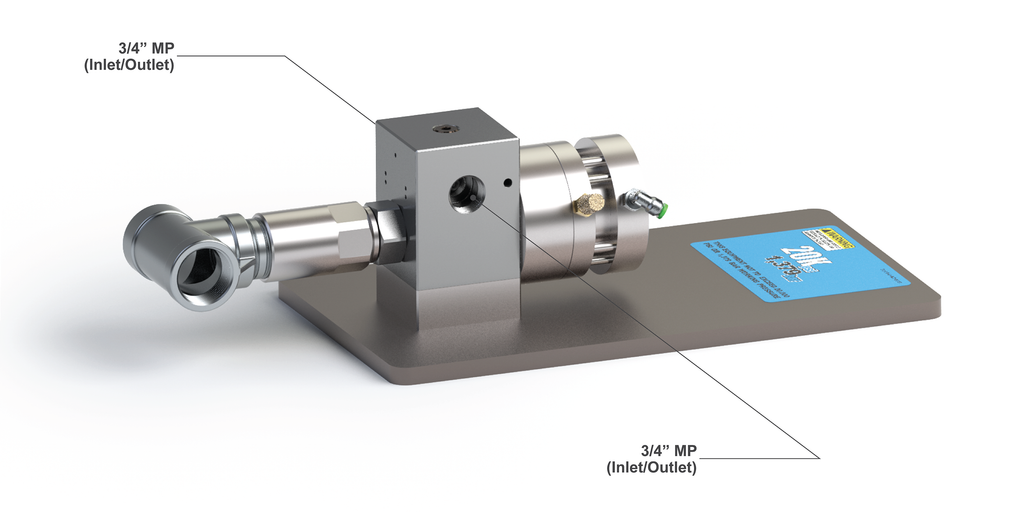

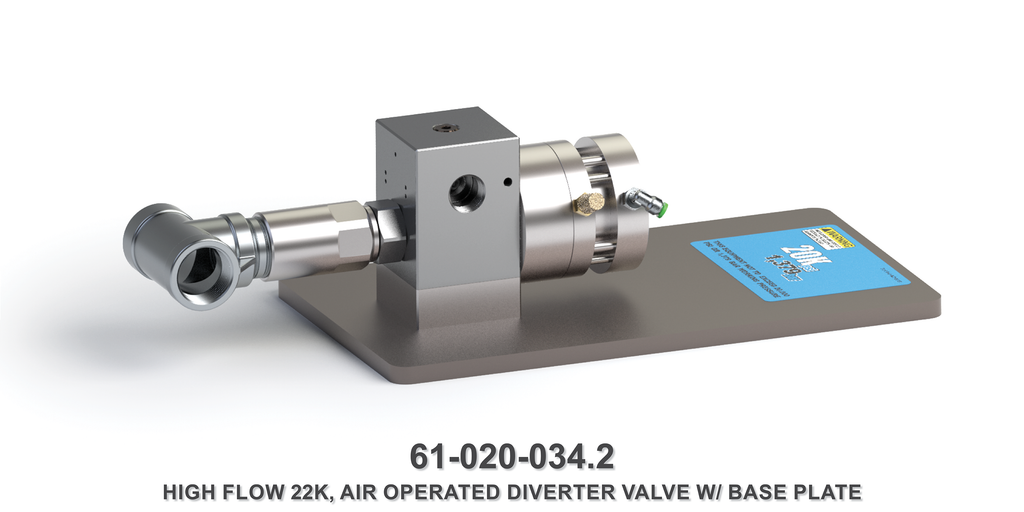

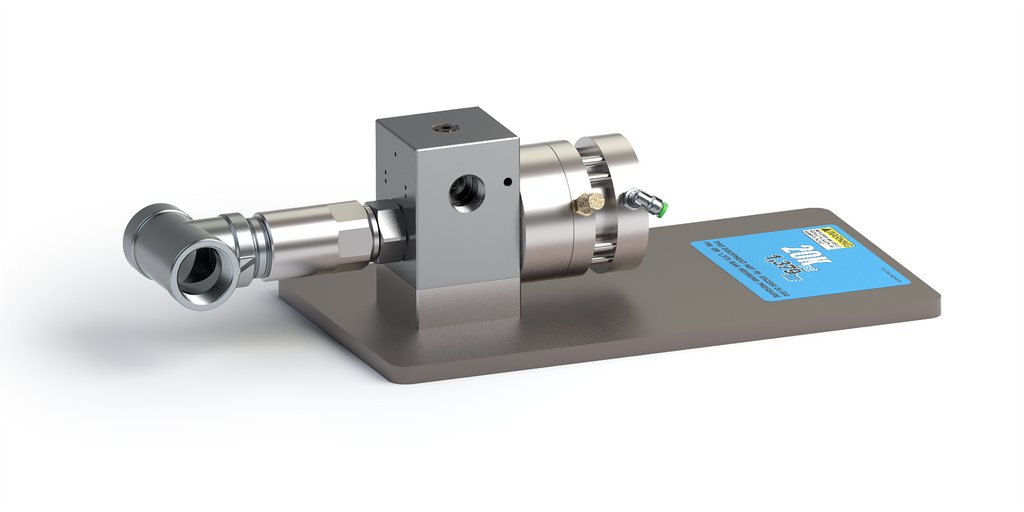

20K psi HIGH VOLUME AIR DIVERTER VALVE

Manufacturer: Advanced Pressure Systems
SKU: 61-020-034.2

Air Operated Diverter Valves provide much improved operator safety by allowing control of flow and pressure to be carried out remotely. When air is sent to the cylinder, the valve closes and allows the system to build pressure. The valve opens when the air is exhausted, reducing system pressure to near atmospheric.


Features:

  • 30-second field replaceable cartridge design for minimal downtime
  • Remote pneumatic operation for reduced operator fatigue and added convenience and safety
  • Inlet and outlet connections threaded 1" MP
  • Heavy duty air cylinder
  • All components precision machined from stainless steel
See more: Control Gun
  Digital Downloads
  1. 20K psi High Volume Air Diverter Valve Specs Sheet
  2. 15-40K psi Air Diverter Valves Brochure
  3. 15-40K psi Control Guns Catalog
